Sale!
4.65"(118mm) x 49.75"(1264mm) x 3.14"(80mm) Double Acting Hydraulic Cylinder 6112022460

4.65″(118mm) x 49.75″(1264mm) x 3.14″(80mm) Double Acting Hydraulic Cylinder 6112022460

Original price was: $499.95.Current price is: $99.99.

SKU: 904599 Category:

Description

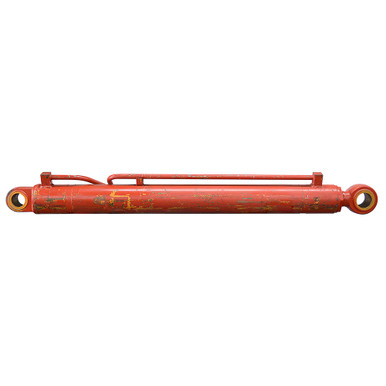

4.65″(118mm) x 49.75″(1264mm) x 3.14″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 6112022460.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.65″(118mm) x 49.75″(1264mm)
  • Barrel Thickness 0.670″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 3.14″(80mm)
  • Ports 1″ BSPP
  • Retracted Length 69.5″
  • Gland Face to Rod Pin Center 4.75″
  • Shpg. 451 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.93″
  • Pin-Center-To-Tang-End 3.02″
  • Pin Hole 3.16″(80mm)
  • Base End Tang
  • Width 3.54″
  • Pin-Center-To-Tang-End 2.64″
  • Pin Hole 2.76″(70mm)
