Description

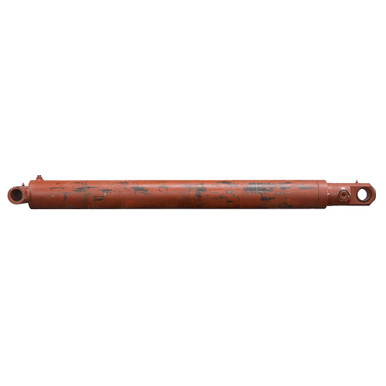

4.5″ x 43″ x 4″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 715109
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 43″
- Barrel Thickness 0.262″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 4″, Hollow
- Rod Thickness 0.249″
|
- Ports SAE 14
- Retracted Length 60.25″
- Gland Face to Rod Pin Center 6.5″
- Shpg. 149 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 2.43″
- Pin-Center-To-Swivel Eye-End 2.12″
- Swivel Eye Width 2″
- Pin Hole 2″
|
- Base End Cross-Tube
- O.D. 3″
- Width 8.25″
- Pin Hole 2″
|
