Description

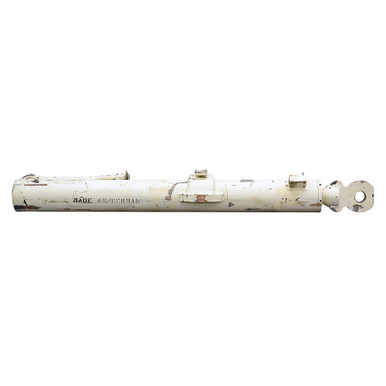

4.5″ x 33.5″ x 2.356″(60mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder is made of brass. Numbers on cylinder 737.0653.000.000
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 33.5″
- Barrel Thickness 0.458″
- Gland Retainer Threaded in gland
- Pressure 2500
- Rod Dia. 2.356″(60mm)
|
- Ports Clip retained 0.712″(18mm) I.D.
- Retracted Length 26″ (side mount center to pin center)
- Shpg. 276 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 1.23″
- Pin-Center-To-Tang-End 2.19″
- Thru-hole Width 1.23″
- Pin Hole 1.779″(45mm)
|
- Base End Sidemount
- Dimensions 1-1/4″ thick x 6-3/4″ long
|
