Description

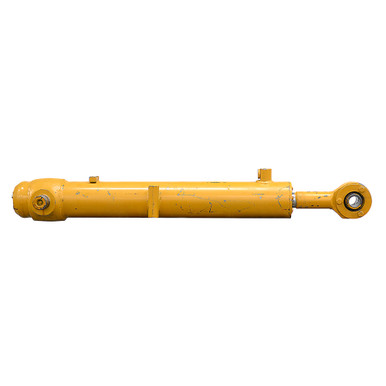

4.5″ x 24.25″ x 2.25″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has accessory pad mount 2.25″ x 1″ x 0.75″ with 3/8″-16 drilled and tapped holes on 1.49″ bolt centers. Numbers on cylinder 05P 911495 733880091 84622.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 24.25″
- Barrel Thickness 0.384″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 2.25″
|
- Extend Port 4 bolt 1″ code 61 flange size 16
- Retract Port SAE 12
- Retracted Length 43.5″
- Gland Face to Rod Pin Center 8.75″
- Shpg. 216 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 2.64″
- Pin-Center-To-Swivel Eye-End 2.44″
- Swivel Eye Width 4″
- Pin Hole 1-1/2″
|
- Base End Female Trunnion
- Pin Outside/Inside Width 10.75″ / 7″
- Pin-Center-To-Rod Pin Center 43.5″
- Pin Center To Base End 4.875″
- Pin Diameter 2″
|
