Description

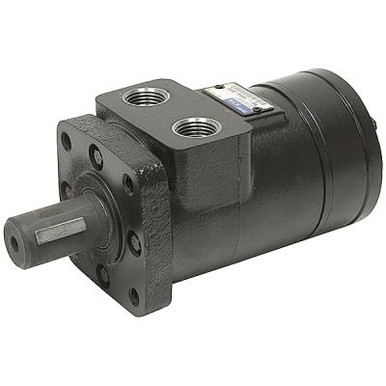

4.5 cu in CHAR-LYNN 101-1002 HYD MOTOR
Brand new CHAR-LYNN H series motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Disp. 4.5 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
1800 PSI cont. 2400 PSI int. - Torque:
1044in-lbs. cont. 1401in-lbs. int. - Speed:
760RPM cont. 904RPM int. - Flow:
15GPM cont. 18GPM int. - Rotation Reversible
- Mount 4 bolt 3.25″ B.C.
- Shaft 1″ dia. x 1-3/4″ keyed
- Ports 1/2″ NPT
- Case Drain N/A
- Size5-3/8″ x 3-5/16″ x 3-5/16″
- Shpg.13 lbs.
