Description

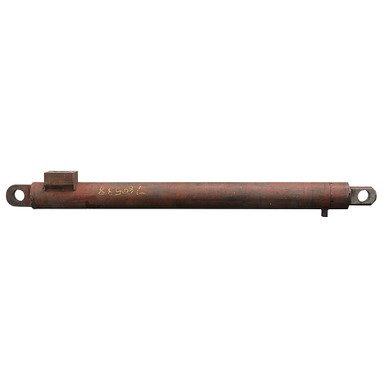

4.36″(110mm) x 51″(1295.4mm) x 4.36″(110mm) SINGLE ACTING HYDRAULIC DISPLACEMENT CYLINDER
Unused old inventory. Single acting hydraulic displacement cylinder. Amhoist American Crane numbers on cylinder 780538.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 4.36″(110mm) x 51″(1295.4mm)
- Barrel Thickness 0.580″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 4.36″(110mm)
- Rod Thickness 0.480″
|
- Ports 4 bolt flange with 3/4″-10 drilled and tapped holes on 4.24″ x 5.36″ bolt centers with a 2.5″ port hole
- Retracted Length 70″
- Gland Face to Rod Pin Center 3″
- Shpg. 344 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 2.5″
- Pin-Center-To-Tang-End 2.5″
- Pin Hole 2-1/2″
|
- Base End Tang
- Thickness, Max 2.54″
- Pin-Center-To-Tang-End 2.54″
- Pin Hole 2-1/2″
|
