Description

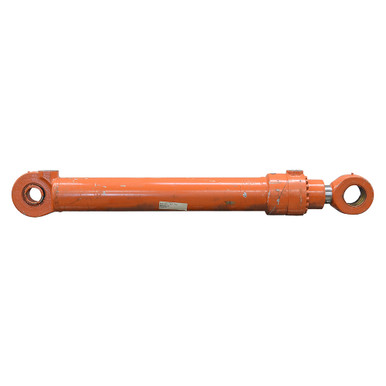

4.13″(105mm) x 28.75″(730mm) x 2.76″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. ATLAS double acting hydraulic cylinder. Numbers on cylinder 6000577.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.13″(105mm) x 28.75″(730mm)
- Barrel Thickness 0.4″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 2.76″(70mm)
|
- Ports 4 bolt 3/4″ code 62 flange size 12
- Retracted Length 46″
- Gland Face to Rod Pin Center 7.125″
- Shpg. 231 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.125″
- Pin-Center-To-Tang-End 2.79″
- Pin Hole 3.15″(80mm)
|
- Base End Swivel Eye
- Width 1.7″
- Pin-Center-To-Swivel Eye-End 2.31″
- Swivel Eye Width 2.25″
- Pin Hole 2.16″(55mm)
|
