Description

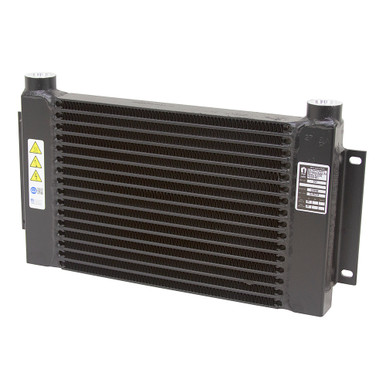

30 GPM AKG C14 Oil Cooler
Brand new AKG C series rugged bar and plate construction oil coolers that feature aluminum construction, leak-free SAE O-Ring connections and mounting tabs. Cooler performance listed in specs below is based on 1,000 SFPM (Square Feet Per Minute) cooling air flow.
SPECIFICATIONS
- Manufacturer AKG
- Model Number C14
- AKG Item 1102122300
- Pressure 250 PSI max.
- Temperature 250 F° max.
- Construction Aluminum
- Flow 30 GPM
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 18417 - Port Size SAE 12
- Mount Four 1/2″ slotted holes on 19.15″ x 6 centers
- Overall Depth (in.) 1.77
- Overall Width (in.) 19.15
- Overall Height (in.) 10.88
- Shpg. 19 lbs.
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
