Description

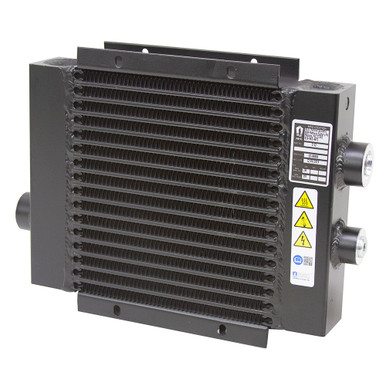

30 GPM AKG C12 Oil Cooler
Brand new AKG C series rugged bar and plate construction oil coolers that feature aluminum construction, leak-free SAE O-Ring connections and mounting tabs. Cooler performance listed in specs below is based on 1,000 SFPM (Square Feet Per Minute) cooling air flow.
SPECIFICATIONS
- Manufacturer AKG
- Model Number C12
- AKG Item 6892.006.1000
- Pressure 250 PSI max.
- Temperature 250 F° max.
- Construction Aluminum
- Flow 30 GPM
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 20208 - Port Size SAE 12
- Mount Four 7/16″ slotted holes on 4.96″ x 10.74″ centers
- Drain/Temperature Sensor Port Size SAE 8
- Overall Depth (in.) 2.56
- Overall Width (in.) 13.78
- Overall Height (in.) 11.61
- Shpg. 20 lbs.
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
