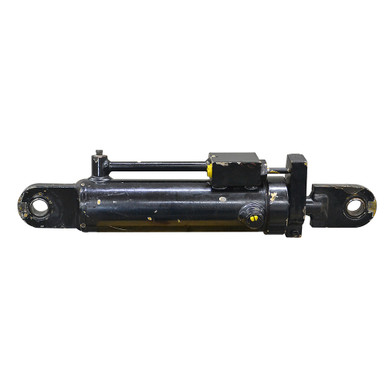

3" x 8" x 1.25" Double Acting Hydraulic Cylinder

3″ x 8″ x 1.25″ Double Acting Hydraulic Cylinder

Original price was: $149.95.Current price is: $37.49.

SKU: 905473 Category:

Description

3″ x 8″ x 1.25″ HYDRAULIC CYLINDER
Removed from service. Welded, double acting hydraulic cylinder. Adjustable depth control.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3″ x 8″
  • Gland Retainer Externally threaded
  • Pressure 2500 PSI max.
  • Rod Dia. 1.25″
  • Ports SAE 8
  • Retracted Length 20″
  • Gland Face to Rod Pin Center 4.625″
  • Shpg. 30 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 0.789″
  • Pin-Center-To-Swivel Eye-End 1.384″
  • Swivel Eye Width 0.870″
  • Pin Hole 1″
  • Base End Swivel Eye
  • Width 0.763″
  • Pin-Center-To-Swivel Eye-End 1.375″
  • Swivel Eye Width 0.870″
  • Pin Hole 1″
