Sale!
3" x 36" x 1.5" Double Acting Hydraulic Cylinder

3″ x 36″ x 1.5″ Double Acting Hydraulic Cylinder

Original price was: $179.95.Current price is: $44.99.

SKU: 904540 Category:

Description

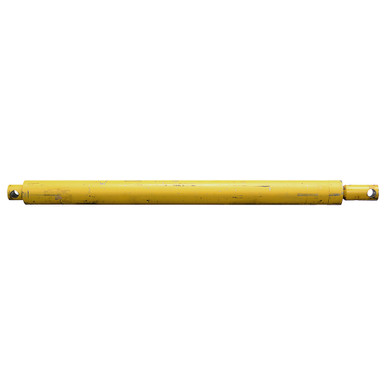

3″ x 36″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder AFGWU 187189.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3″ x 36″
  • Barrel Thickness 0.203″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 1.5″
  • Rod Thickness 0.222″
  • Ports 1/4″ NPT
  • Retracted Length 49.5″
  • Gland Face to Rod Pin Center 4″
  • Shpg. 65 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Width 2.125″
  • Pin Center to Base/Rod End 1″
  • Pin Hole 1-1/8″
  • Base End Thru-Hole
  • Width 2.125″
  • Pin Center to Base/Rod End 1″
  • Pin Hole 1-1/8″
