Sale!
3" x 20" x 1.5" Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB3020-S

3″ x 20″ x 1.5″ Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB3020-S

Original price was: $303.10.Current price is: $60.62.

SKU: 904301 Category:

Description

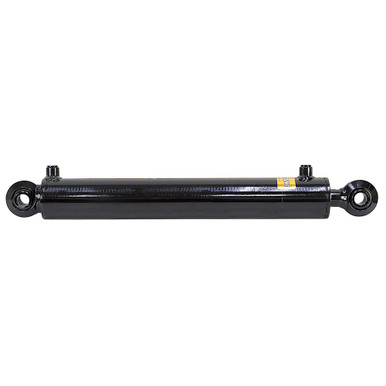

3″ x 20″ x 1.5″ DOUBLE-ACTING HYDRAULIC CYLINDER
Brand new Wolverine by Prince Mfg double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye mount on both ends to allow for angular misallignment.

SPECIFICATIONS
  • Brand Wolverine by Prince Mfg
  • Model Number WWSB3020-S
  • Double Acting
  • Bore x Stroke 3″ x 20″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1.5″
  • Column Load 3000 PSI max. @ full extension
  • Ports SAE 8
  • Retracted Length 28.25″
  • Shpg. 35 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Ball Width 1.75″
  • Ball O.D. 3.13″
  • Pin Hole 1″
  • Base End Swivel Eye
  • Ball Width 1.75″
  • Ball O.D. 3.13″
  • Pin Hole 1″
