Description

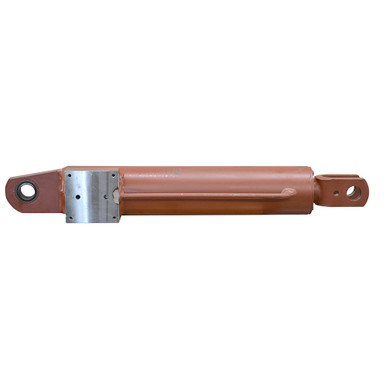

3″ x 12″ x 1.5″ DA HYD CYL
Unused old inventory. Welded hydraulic cylinder with wire ring gland retainer. GMI model 110-2618, numbers on barrel GMI 3345 9/03 110-2618.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 12″
- Barrel Thickness 0.188
- Gland Retainer Wire Ring
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Manifold Ports Two, 0.312″ dia. port holes
- Manifold Mount Four, M6-1.0 X 17mm tapped holes on 2.813″ x 2.813″ centers
- Manifold Dimensions 3.5″ x 3.5″
- Retracted Length 22.25″
- Gland Face to Rod Pin Center 2.875″
- Shpg. 33 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 2.158″
- Inside Width 1.160″
- Throat Depth 2.875″
- Pin Hole 1″
|
- Base End Tang
- Width 0.75″
- Pin-Center-To-Tang-End 1.473″
- Pin Hole 0.871″
|
