Description

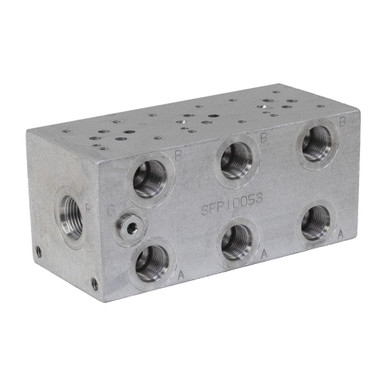

3 STATION D03 MANIFOLD
Brand new, machined aluminum subplate. Three station series circuit (for open center valves) manifold to mount three D03 valves.
SPECIFICATIONS
- Brand Source Fluid Power
- Model SFP-10053
- Material 6061-T6 Aluminum
- Style D03
- Stations 3
- Circuit Series
- Pressure Rating 3000 PSI
- Pressure port SAE 10
- Tank port SAE 12
- Work ports SAE 8
- Valve Mounts Four holes tapped 10-24
- Subplate Mount Two threaded 5/16″-18 TPI holes on each side on 2-3/8″ centers
- Size 6.75″ x 3″ x 3″
- Shpg. 6.75 lbs.
Mounting Bracket Kit
| Mounting Bracket Kit for D03 Manifolds Source Fluid Power SFP10081 |
906205 |
Cover Plate
| D03 Cover Plate Source Fluid Power SFP10089 |
906315 |
Screw for Mounting Solenoid Valve to Manifold
| 10-24 x 1.25″ Grade 8 Socket Cap Screw |
903986 |
Compatible Solenoid Valves
| 12 Volt DC 10 GPM Double Acting Tandem Center Solenoid Valve Eaton-Vickers DG4V-3-8C-VM-U-G7-61 |
901041 |
| 12 Volt DC 10 GPM Motor Spool Open Center Solenoid Valve Eaton-Vickers DG4V-3-0C-M-U-G7-60 |
901042 |
| 120 Volt AC 10 GPM Double Acting Tandem Center Solenoid Valve Eaton-Vickers DG4V-3-8C-VM-U-B6-61 |
901796 |
| 120 Volt AC 10 GPM Motor Spool Open Center Solenoid Valve Eaton-Vickers DG4V-3-0C-VM-U-B6-60 |
901797 |
