Sale!
3.98"(101mm) x 13.625"(346mm) x 2.5"(64mm) Double Acting Hydraulic Cylinder

3.98″(101mm) x 13.625″(346mm) x 2.5″(64mm) Double Acting Hydraulic Cylinder

Original price was: $99.95.Current price is: $29.99.

SKU: 904838 Category:

Description

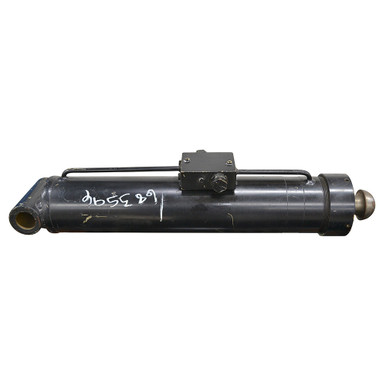

3.98″(101mm) x 13.625″(346mm) x 2.5″(64mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has two cartridge valves for extend and retract ports.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.98″(101mm) x 13.625″(346mm)
  • Barrel Thickness 0.263″
  • Gland Retainer Externally threaded gland cap
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports 1/4″ NPT
  • Retracted Length 26.72″
  • Gland Face to Rod Pin Center 1.25″
  • Shpg. 79 lbs.
END MOUNTINGS
  • Rod End Half Ball
  • Dimensions 2.187″ x 2.46″
  • Recessed Dimensions 1″ x 1.58″
  • Base End Crosstube
  • O.D. 2.5″
  • Width 5.5″
  • Pin Hole 1-1/2″
