Description

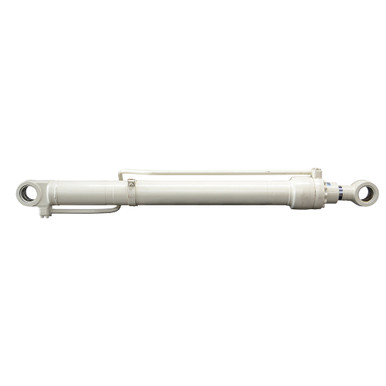

3.925″(100mm) x 42.5″(1080mm) x 2.754″(70mm) HYD CYL
Unused old inventory. DOOSAN 440-00607, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.925″(100mm) x 42.5″(1080mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.754″(70mm)
- Rod Thickness 2.754″(70mm)
|
- Ports BSPP 1/2″-14 TPI
- Retracted Length 61.75″
- Gland Face to Rod Pin Center 5.25″
- Shpg. 306 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.34″
- Pin-Center-To-Tang-End 2.487″
- Pin Hole 2.797″(70mm)
|
- Base End Tang
- Width 3.337″
- Pin-Center-To-Tang-End 2.451″
- Pin Hole 2.797″(70mm)
|
