Description

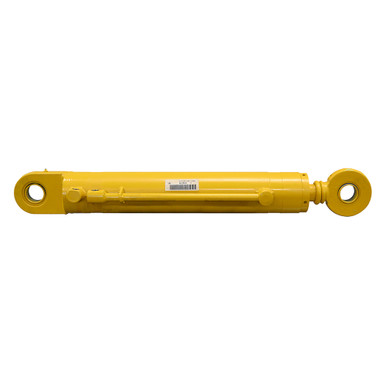

3.89″(100mm) x 18″(457mm) x 1.97(50mm)” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder AT254727.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.89″(100m) x 18″(457mm)
- Barrel Thickness 0.4″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 1.97″(50mm)
|
- Ports 1/2″ NPT
- Retracted Length 35.75″
- Gland Face to Rod Pin Center 4.75″
- Shpg. 146 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.27″
- Pin-Center-To-Swivel Eye-End 2.75″
- Swivel Eye Width 1.5″
- Pin Hole 1.97″(50mm)
|
- Base End Swivel Eye
- Width 1.59″
- Pin-Center-To-Swivel Eye-End 2.375″
- Swivel Eye Width 1.5″
- Pin Hole 1.97″(50mm)
|
