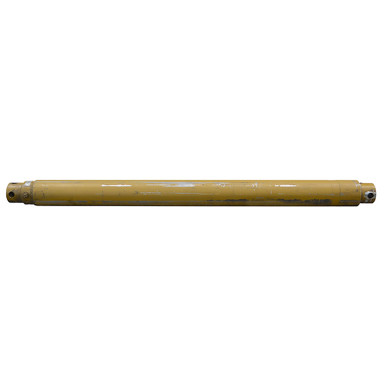

3.75″ x 47.25″ x 3.75″ SINGLE ACTING HYDRAULIC DISPLACEMENT CYLINDER
Unused old inventory. Single acting hydraulic displacement cylinder. Cylinder has two way thru-hole on base end and has bad wiper. Iowa Industrial numbers on cylinder M-63407-002 D1306943-C 45500-033-1.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 3.75″ x 47.25″
- Barrel Thickness 0.326″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 3.75″, Hollow
- Rod Thickness 0.265″
|
- Ports 1/2″ NPT
- Retracted Length 60.5″
- Gland Face to Rod Pin Center 1.5″
- Shpg. 139 lbs.
|
| END MOUNTINGS |
- Rod End Thru-Hole
- Width 3.5″
- Pin Center to Base End 1″
- Pin Hole 1″
|
- Base End Thru-Hole
- Width 3.5″
- Pin Center to Base End 1″
- Pin Hole 1″
|
