3.75" x 201" x 2.75" Double Acting Hydraulic Cylinders 57124-09

3.75″ x 201″ x 2.75″ Double Acting Hydraulic Cylinders 57124-09

Original price was: $1,194.95.Current price is: $238.99.

SKU: 902467 Category:

Description

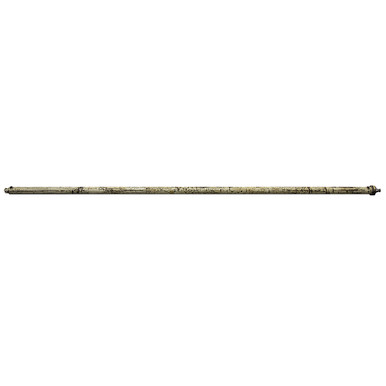

3.75″ x 201″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with bolt-on gland cap. Retracted length measured from base pin center to rod end.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-3/4″ x 201″
  • Barrel Thickness 1/4″
  • Pressure 3000 PSI max.
  • Rod Dia. 2-3/4″
  • Ports SAE 12
  • Retracted Length 216-1/2″
  • Shpg. 640 lbs.
END MOUNTINGS
  • Rod End Stepped Shaft
  • First Step 2″ dia. x 7/8″ long
  • Second Step 1-1/2″ dia. x 0.965″ long
  • Third Step 1.958″ dia. x 0.480″ long
  • Base End Clevis
  • Outside Width 2-1/8″
  • Inside Width 1″
  • Throat Depth 3″
  • Pin Hole 1-1/4″
