Description

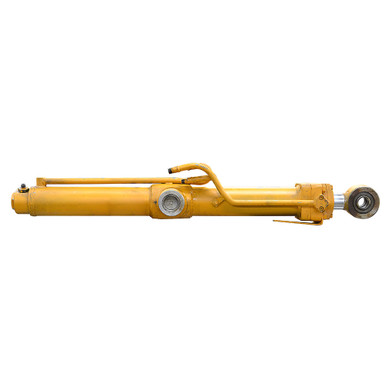

3.727″(95mm) x 34″ x 2.359″(60mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has cushion valve in base end and external port JIS size 9-30° flare BSPP threads 3/8″-19. JIS 9 and JIS 12 ports on retract tube.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 95mm(3.727″) x 16.5″
- Barrel Thickness 0.289″
- Gland Retainer Welded gland
- Pressure 3000 PSI max.
- Rod Dia. 60mm(2.359″)
|
- Extend Port JIS size 12-30° flare, BSPP threads 1/2″-14
- Retract Port JIS size 12-30° flare, BSPP threads 1/2″-14 and JIS size 9-30° flare BSPP threads 3/8″-19
- Retracted Length 52″
- Shpg. 211 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 2.44″
- Pin-Center-To-Tang-End 2.48″
- Pin Hole 40mm(1.575″)
|
- Base End Female Trunnion
- Pin Outside/Inside Width 8.125″ / 5.287″
- Pin-Center-To-Rod Pin Center 28.25″
- Pin Center To Base End 23.25″
- Pin Hole 50mm(1.971″)
|
