3.5"(89mm) x 38.125"(968mm) x 1.97"(50mm) Double Acting Hydraulic Cylinder Volvo 4833111

3.5″(89mm) x 38.125″(968mm) x 1.97″(50mm) Double Acting Hydraulic Cylinder Volvo 4833111

Original price was: $249.95.Current price is: $62.49.

SKU: 904780 Category:

Description

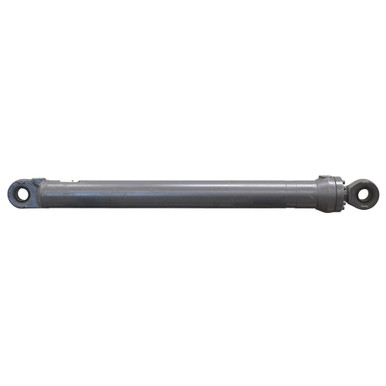

3.5″(89mm) x 38.125″(968mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 4833111.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″(89mm) x 38.125″(968mm)
  • Barrel Thickness 0.319″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 1.97″(50mm)
  • Ports 4 bolt 1/2″ code 61 flange size 8
  • Retracted Length 50.25″
  • Gland Face to Rod Pin Center 3.5″
  • Shpg. 120 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 1.75″
  • Pin-Center-To-Swivel Eye-End 2.24″
  • Swivel Eye Width 1.25″
  • Pin Hole 1.77″(45mm)
  • Rod End Swivel Eye
  • Width 1.75″
  • Pin-Center-To-Swivel Eye-End 2.17″
  • Swivel Eye Width 1.25″
  • Pin Hole 1.77″(45mm)
