Description

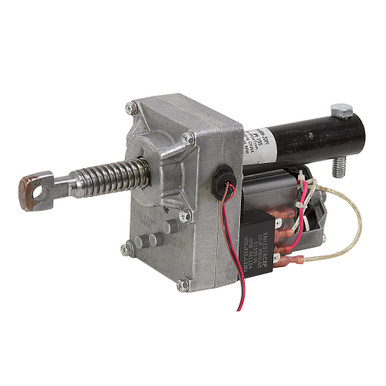

3.56″ STROKE LINEAR ACTUATOR
New, GENTECH model 231224 PUSH-33R linear actuator. Power extend and power retract. Removable stroke-limiting device installed in rod end pinhole. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Brand Gentech
- Model Number 231224 PUSH-33R
- Voltage 120 VAC, 60 Hz
- Amperage 1.55 Amps
- Thread 3/4″-6 Acme thread
- Stroke 3.56″
- Extension Speed 0.085″ / sec. (no load)
- Extension Time 42 seconds to Full Stroke, No Load
- Limit Switches No limit switches
- Direction Reversible
- Duty Intermittent
- Retracted length 8-1/8″
- Rod end pin hole 3/8″
- Base end pin hole 3/8″
- Size 10″ x 4-1/4″ x 3-1/8″
- Shpg. 7 lbs.
