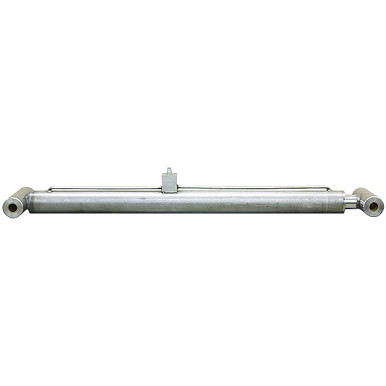

3.5" x 46" x 2.5" Double Acting Hydraulic Cylinder

3.5″ x 46″ x 2.5″ Double Acting Hydraulic Cylinder

Original price was: $299.95.Current price is: $74.99.

SKU: 902510 Category:

Description

3.5″ x 46″ x 2.5″ DOUBLE ACTING WELDED HYDRAULIC CYLINDER
New, old inventory. Welded hydraulic cylinder with internal threaded gland. Transfer tube, both ports on block near center of cylinder barrel. SUN model CBBA LIN counter-balance valve with 3:1 pilot ratio rated for 5 GPM, factory set to 1100 PSI, 400 to 1500 PSI functional setting range w/ 25 PSI check.
1/4″ barrel tubing thickness.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-1/2″ x 46″
  • Pressure 3000 PSI max.
  • Rod Dia. 2-1/2″
  • Ports SAE 6
  • Retracted Length 60″
  • Shpg. 240 lbs.
END MOUNTINGS
  • Rod End Crosstube
  • Outside Width 11-5/8″
  • Outside Diameter 3-1/2″
  • Pin Hole 1-1/2″
  • Base End Crosstube
  • Outside Width 11-5/8″
  • Outside Diameter 3-1/2″
  • Pin Hole 1-1/2″
