Description

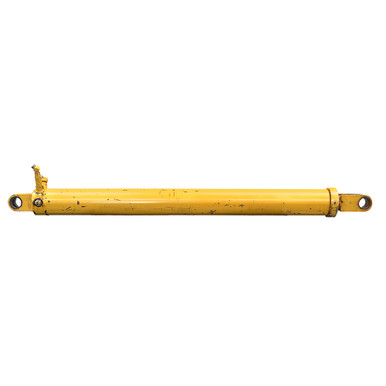

3.5″ x 36″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has check valves with numbers 8FS9 CBOA SUN 3750 PSI. Cylinder has some pitting near end of rod.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.5″ x 36″
- Barrel Thickness 0.195″
- Gland Retainer Externally threaded gland cap
- Pressure 3000 PSI
- Rod Dia. 1.5″
|
- Ports ORFS 6
- Retracted Length 51.25″
- Gland Face to Rod Pin Center 4.125″
- Shpg. 121 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 2″
- Inside Width 1.02″
- Throat Depth 3.8″
- Pin Hole 1-1/2″
|
- Base End Clevis
- Outside Width 2.53″
- Inside Width 1.02″
- Throat Depth 3.71″
- Pin Hole 1-1/2″
|
