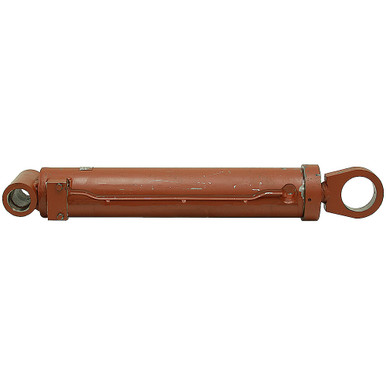

3.5" x 15" x 1.5" Double Acting Hydraulic Cylinder Dana Mobile Fluid Products 15870-2

3.5″ x 15″ x 1.5″ Double Acting Hydraulic Cylinder Dana Mobile Fluid Products 15870-2

Original price was: $109.95.Current price is: $27.49.

SKU: 900970 Category:

Description

3.5″ x 15″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with thread-on gland cap. Dana Mobile Fluid Products Division Part 15870-2.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″ x 15″
  • Barrel Thickness 0.25″
  • Pressure 3000 PSI max.
  • Rod Dia. 1.5″
  • Ports 1/4″ NPT
  • Retracted Length 26.75″
  • Shpg. 51 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.375″
  • Pin Center to Tang End 2.03125″
  • Pin Hole 2.1875″
  • Base End Crosstube
  • Width 4.9375″
  • O.D. 2.25″
  • Pin Hole 1.75″
