Description

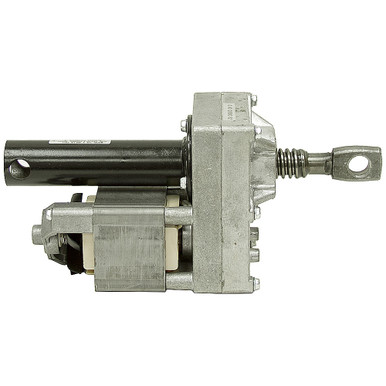

3.5″ STROKE 900LB PULL 120 VOLT AC LINEAR ACTUATOR
New, Icon Health & Fitness model 293451 120V 900LB PULL linear actuator. Power extend and power retract. Rated to pull up to 900 pounds, extend under no load. Shaded pole motor with open construction and external fan, thermally protected. Hall-effect sensor connected to internal gearing allows for use with position-sensing circuits.
SPECIFICATIONS
- Brand Icon Health & Fitness
- Model Number 293451
- Stroke 3-1/2″
- Voltage 120 Volt AC, 60 Hz
- Amperage 1.55 Amps
- Push/Pull Rating
- Dynamic Rated to Pull 900 lb.
- Extension Speed
- No Load 0.0896 in./sec.
- RPM 27 RPM
- Thread 3/4″-6 Acme Thread
- Limit Switches No Limit Switches
- Direction Reversible
- Duty Intermittent
- Retracted length 7-1/2″
- Pin Holes 1/2″
- Size 8″ x 4.25″ x 3.125″
- Shpg. 6 lbs.
