Description
COUNTERBALANCE VALVE

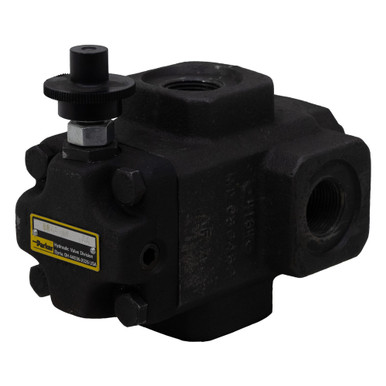

New, Parker BRC6PMV in-line mounted externally pilot operated counterbalance valve. Provides resistance to fluid flow and act as energy absorbers to balance inertia or static weight. By-pass check permits reverse flow, thus, flow in one direction is accompanied by proper valve operation (counterbalance function) and flow in the reverse direction by-passes the counterbalance function.
SPECIFICATIONS
- Brand Parker
- Bold BRC6PMV
- Max. Operating Pressure 3000 PSI
- Pressure Adjustment Range 150-1000 PSI
- Max. Flow Rate 30 GPM
- Inlet/Outlet Ports 3/4″ NPT
- Remote Pilot Port 1/4″ NPT
- Gauge Ports 1/4″ NPT (Plugged)
- Mounting Style Inline
- Size 6-1/4″ x 5-1/4″ x 3-3/4″
- Shpg 15 lbs.
