Description

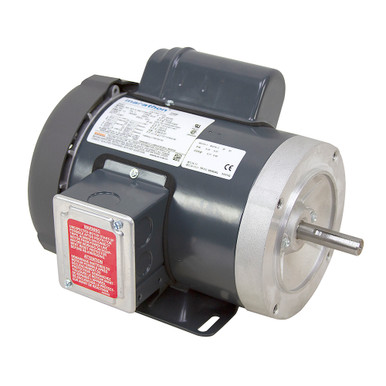

3/4 HP 1725 RPM MOTOR
Brand new, Marathon Electric model 056C17F5913 general purpose farm duty, capacitor-start motor. Thermal overload protection with manual reset.
SPECIFICATIONS
- Manufacturer Marathon
- Model Number 056C17F5913
- Marathon Catalog Number F133
- Power 3/4 HP
- Voltage 115/208-230 Volt AC
- Phase 1
- Frequency 60 Hz
- Amperage 11.0/5.4-5.5 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Base Mount Four 0.88″ x 0.35″ elliptical slots on 4-7/8″ x 3″ centers
- Face Mount Four 3/8″-16 threaded holes in motor face on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/8″ long keyway
- Size 10.25″ x 8.96″ x 8.23″
- Shpg. 33 lbs.
