Description

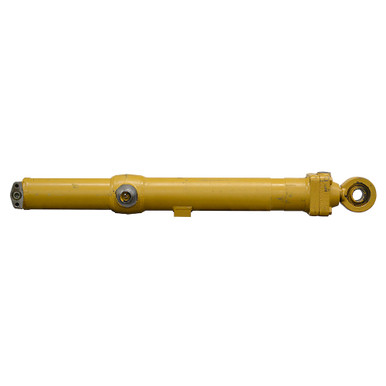

3.15″(80mm) x 31.3″(795mm) x 1.76″(45mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 8292234.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.15″(80mm) x 31.3″(795mm)
- Barrel Thickness 0.432″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 1.76″(45mm)
|
- Extend Port Two M12-1.25″ x 25mm bolt hole flange on 2.208″ centers w/ 0.633″ port hole and 1.186″ o-ring groove
- Retract Port Two M12-1.25″ x 25mm bolt hole flange on 2.208″ centers w/ 0.788″ port hole and 1.181″ o-ring groove
- Retracted Length 27.75″ (trunnion)
- Gland Face to Rod Pin Center 2.25″
- Shpg. 110 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.57″
- Pin-Center-To-Swivel Eye-End 2.18″
- Swivel Eye Width 1.54″
- Pin Hole 1.38″(35mm)
|
- Base End Male Trunnion
- Pin Outside/Inside Width 7.55″ / 4.69″
- Pin-Center-To-Rod Pin Center 27.75″
- Pin Center To Base End 41″
- Pin Dia. 1.46″(37mm)
|
