25:1 SHAFT MOUNT REDUCER

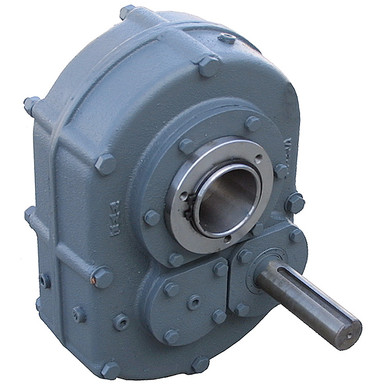

Brand new, WORLDWIDE ELECTRIC CORP shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Premium quality ball and tapered bearings. Tapered bushing output (bushing not included). Torque arm included. Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SMR4-25/1
- Ratio 25:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-7/16″ diam. x 5-9/16″ w/ 3/8″ keyway
- Output Bore see table below
- Size 10-3/8″ x 15-1/8″ x 8-3/16″
- Shpg. 170 lbs.
Service Class I
Service Class II
Service Class III
HP
RPM
Torque
HP
RPM
Torque
HP
RPM
Torque
| 1 |
4-5 |
15075-12060 in-lbs |
0.75 |
4-5 |
1130-9045 in-lbs |
0.5 |
4-5 |
7538-6030 in-lbs |
| 1.5 |
5-7 |
18091-12922 in-lbs |
1 |
5-7 |
12060-8515 in-lbs |
0.75 |
5-7 |
9045-6461 in-lbs |
| 2 |
7-10 |
17229-12060 in-lbs |
1.5 |
7-11 |
12922-8223 in-lbs |
1 |
7-10 |
8615-6030 in-lbs |
| 3 |
11-15 |
16446-12060 in-lbs |
2 |
10-14 |
12060-8615 in-lbs |
1.5 |
11-15 |
8223-6030 in-lbs |
| 5 |
18-26 |
16750-11596 in-lbs |
3 |
15-22 |
12060-8223 in-lbs |
2 |
14-21 |
8615-5743 in-lbs |
| 7.5 |
27-40 |
16750-11307 in-lbs |
5 |
25-37 |
12060-8149 in-lbs |
3 |
21-32 |
8615-5653 in-lbs |
| 10 |
37-56 |
16298-10768 in-lbs |
7.5 |
39-59 |
11596-7665 in-lbs |
5 |
37-56 |
8149-5384 in-lbs |
| 15 |
57-85 |
15869-10641 in-lbs |
10 |
53-84 |
11378-7179 in-lbs |
7.5 |
57-85 |
7934-5321 in-lbs |
| 20 |
79-85 |
15266-14189 in-lbs |
– |
– |
– |
– |
– |
– |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 1-15/16″ |
602633 |
2″ |
602634 |
| 2-3/16″ |
602638 |
2-1/4″ |
602636 |
| 2-7/16″ |
602637 |
OTHER OPTIONS
| MOTOR MOUNT |
602611 |
| BACKSTOP ASSEMBLY |
602616 |
| BELT GUARD |
602653 |
