25:1 SHAFT MOUNT REDUCER

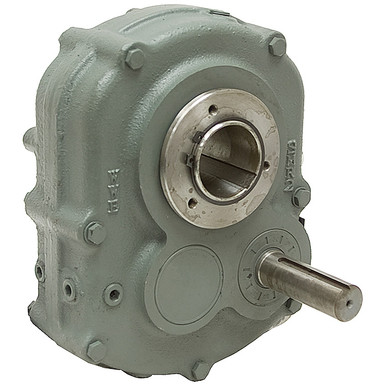

Brand new, WORLDWIDE ELECTRIC CORP shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Premium quality ball and tapered bearings. Tapered bushing output (bushing not included). Torque arm included. Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SMR2-25/1
- Ratio 25:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-1/8″ dia. x 3-9/16″ w/ 1/4″ keyway
- Output Bore see table below
- Size 8-3/8″ x 11-7/16″ x 5-7/8″
- Shpg. 71 lbs.
| Service Class I |
Service Class II |
Service Class III |
| HP |
RPM |
Torque |
HP |
RPM |
Torque |
HP |
RPM |
Torque |
| 0.5 |
4-6 |
7538-5025 in-lbs |
0.33 |
4-6 |
5025-3350 in-lbs |
0.25 |
4-6 |
3769-2513 in-lbs |
| 0.75 |
6-10 |
7538-4523 in-lbs |
0.5 |
6-9 |
5025-3350 in-lbs |
0.33 |
5-9 |
4020-2233 in-lbs |
| 1 |
8-15 |
7538-4020 in-lbs |
0.75 |
9-16 |
5025-2827 in-lbs |
0.5 |
8-15 |
3769-2010 in-lbs |
| 1.5 |
13-23 |
6958-3933 in-lbs |
1 |
12-22 |
5025-2741 in-lbs |
0.75 |
13-23 |
3479-1966 in-lbs |
| 2 |
18-32 |
6700-3769 in-lbs |
1.5 |
19-34 |
4761-2660 in-lbs |
1 |
18-32 |
3350-1774 in-lbs |
| 3 |
27-51 |
6700-3547 in-lbs |
2 |
25-47 |
4824-2566 in-lbs |
1.5 |
27-51 |
3350-1774 in-lbs |
| 5 |
47-70 |
6415-4307 in-lbs |
3 |
39-75 |
4639-2412 in-lbs |
2 |
37-71 |
3260-1699 in-lbs |
| 7.5 |
75-85 |
6030-5321 in-lbs |
5 |
70-85 |
4307-3547 in-lbs |
3 |
5-85 |
3119-2128 in-lbs |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 1-5/16″ |
602619 |
1-3/8″ |
602620 |
| 1-7/16″ |
602621 |
1-1/2″ |
602622 |
| 1-5/8″ |
602623 |
1-11/16″ |
602624 |
| 1-3/4″ |
602625 |
1-15/16″ |
602626 |
OTHER OPTIONS
| MOTOR MOUNT |
602609 |
| BACKSTOP ASSEMBLY |
602614 |
| BELT GUARD |
602651 |
