Description

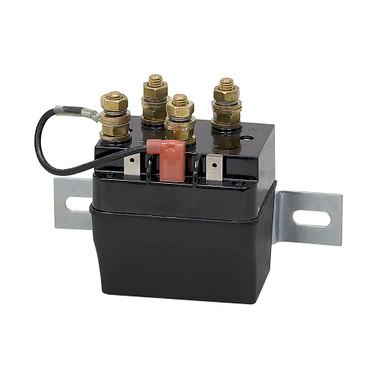

24 VDC MOTOR REVERSING CONTACTOR
Brand new, GlideForce GF90-1383 reversing polarity contactor. Ideal for controlling permanent magnet motors. Both output terminals rest at ground for dynamic braking in de-energized state. Splash resistant body with O-ring seals. Silver-plated contacts.
SPECIFICATIONS
- Coil Ratings
- 24 VDC nominal, 30 VDC max
- 26.8 Ohms
- Contact Ratings
- 5-30 VDC
- 100 Amps @ max duty cycle
- 6 minutes @ max continuous output
- 20% max duty cycle
- Coil terminals: 1/4″ spade
- Motor & battery terminals: 6mm studs
- Two hole mount on 2-3/4″ centers
- Size 2-1/8″ x 3-3/16″ x 3-1/4″
- Shpg. 1 lbs.
