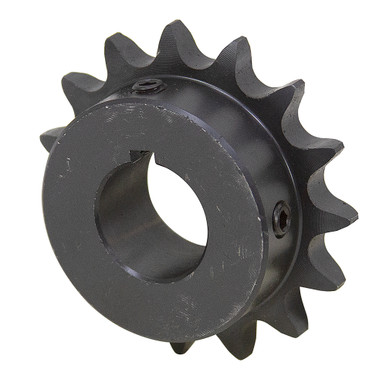

50 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 50 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 24
- Bore Size 7/8″
- Model Number 50BS24H-7/8
- Outside Diameter 5.12″
- Hub Diameter 3″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 3/16″ wide x 3/32″ depth
- Shpg. 4 lbs.
