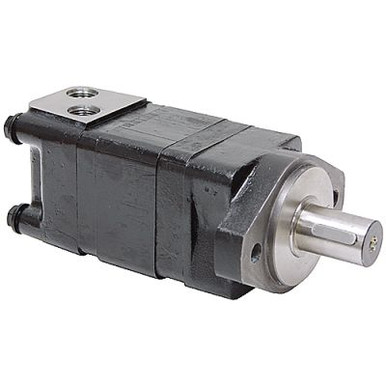

24.04 cu in Dynamic BMS400E2GS Hydraulic Motor

Description

24.04 cu in DYNAMIC BMSY400E2GS HYDRAULIC MOTOR
Brand new. DYNAMIC BMSY series hydraulic motors. Gerolor power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: CHAR-LYNN 2000, DANFOSS OMS / OMSS, WHITE RE / DH, PARKER ROSS MB /TF.

SPECIFICATIONS

• Brand Dynamic
• Model Number 62518
• Build Number BMSY400E2GS
• Family BMSY Series
• Displacement 24.04 cu. in. / rev.
• Motor Type Gerotor
• Rotation Reversible
• Pressure:
     2320 PSI cont.
     2563 PSI int.
• Torque:
     7786 in-lbs. cont.
     8495 in-lbs. int.
• Speed:
     185 RPM cont.
     225 RPM int.
• Flow:
     19.8 GPM cont.
     23.7 GPM int.
• Mount 2 bolt SAE A
• Shaft 1-1/4″ dia x 1.89″ long w/ 5/16″ keyway, tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 8.9375″ x 5.1825″ x 4.0625″
• Shpg. 32 lbs.
