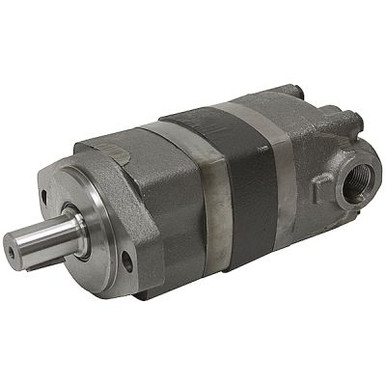

24.0 cu in Char-Lynn 104-1068 Hydraulic Motor

Description

24.0 cu in CHAR-LYNN 104-1068 HYD MOTOR
Brand new CHAR-LYNN 2000 series hydraulic motors.Geroler power element.Tapered roller bearings on output shaft for high axial and radial load capacity.Interchangeable with the following motor lines:Dynamic BMS, Danfoss OMS/OMSS, White RE/DH, Parker/Ross MB/TF.

SPECIFICATIONS

• Disp. 24.0 cu. in. / rev.
• Motor Type Geroler
• Pressure:
    2250 PSI cont.
    2500 PSI int.
• Torque:
    6840in-lbs. cont.
    8170in-lbs. int.
• Speed:
    191RPM cont.
    287RPM int.
• Flow:
    20GPM cont.
    30GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1-1/4″ dia. x 2-3/16″ long with 5/16″ keyway, tapped 3/8-16
• Ports SAE 12
• Case Drain SAE 4
• Size9-7/16″ x 5-1/8″ x 4-1/4″
• Shpg.32 lbs.
