Description

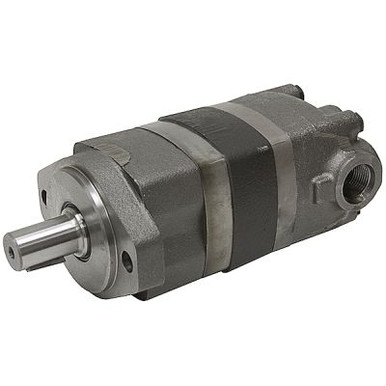

24.0 cu in CHAR-LYNN 104-1044 HYD MOTOR
Brand new, CHAR-LYNN 2000 series hydraulic motors. Geroler power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: Dynamic BMS, Danfoss OMS/OMSS, White RE/DH, Parker/Ross MB/TF.
SPECIFICATIONS
- Disp. 24.0 cu. in. / rev.
- Motor Type Geroler
- Pressure:
2250 PSI cont.
2500 PSI int. - Torque:
6840 in-lbs. cont.
8170 in-lbs. int. - Speed:
191 RPM cont.
287 RPM int. - Flow:
20 GPM cont.
30 GPM int. - Rotation Reversible
- Mount 2 bolt SAE A
- Shaft 1″ dia. x 2″ keyed
- Ports SAE 12
- Case Drain SAE 4
- Size 9.44″ x 5.13″ x 4.245″
- Shpg. 32 lbs.
