Description

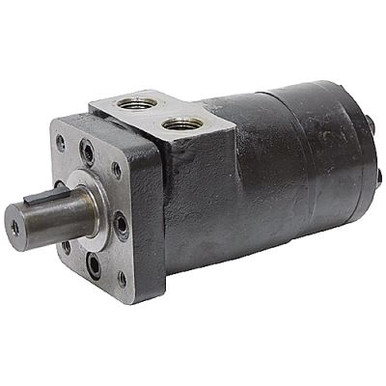

23.61 cu in DYNAMIC BMPH400H4KP HYD MOTOR
Brand new DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61009
- Build Number BMPH-400-H4-K-P
- Disp. 23.61 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
1450 PSI cont.
1813 PSI int. - Torque:
4337 in-lbs. cont.
5133 in-lbs. int. - Speed:
155 RPM cont.
190 RPM int. - Flow:
15.9 GPM cont.
19.8 GPM int. - Rotation Reversible
- Mount 4 bolt
- Shaft 1″ dia. x 1.57″ w/1/4″ Woodruff key, tapped 1/4-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 7-3/8″ x 3-1/4″ x 3-1/4″
- Shpg. 20 lbs.
