Description
23.31:1 SIZE 77 3 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL77-20/1-182/4TC
- Box Size 77
- Stages 2
- Nominal Ratio 20:1
- Actual Ratio 23.31:1

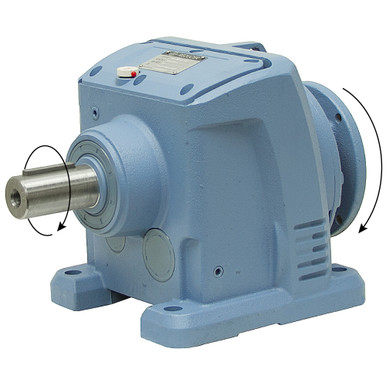

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 75 RPM
- Input Hp 3 Hp Max
- Output Torque 2385 in.-lbs. Max
- Over-Hung Load 1330 lbs. Max
- Service Class III
- Motor Mount 182TC
- Output Shaft 1.625″ dia. x 3.15″ long keyed, 3/8″ wide keyway, shaft end tapped 5/8″-11
- Base Mount Four 0.71″ holes on 8.07″ x 6.69″ centers
- Shpg. 83 lbs.
