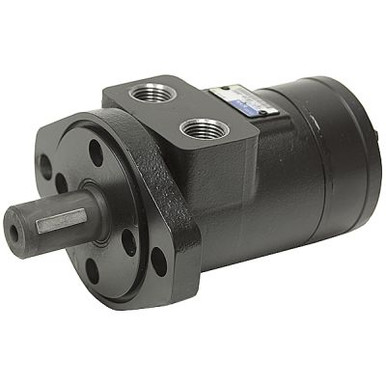

22.6 cu in Char-Lynn 101-1032 Hydraulic Motor

Description

22.6 cu in CHAR-LYNN 101-1032 HYD MOTOR
Brand new CHAR-LYNN H series motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.

SPECIFICATIONS

• Disp. 22.6 cu. in. / rev.
• Motor Type Gerotor
• Pressure:
    1250 PSI cont.
    1500 PSI int.
• Torque:
    3604in-lbs. cont.
    4283in-lbs. int.
• Speed:
    152RPM cont.
    202RPM int.
• Flow:
    15GPM cont.
    20GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1″ dia. x 1-3/4″ keyed
• Ports 1/2″ NPT
• Case Drain N/A
• Size7″ x 3-5/16″ x 3-5/16″
• Shpg.16 lbs.
