Description

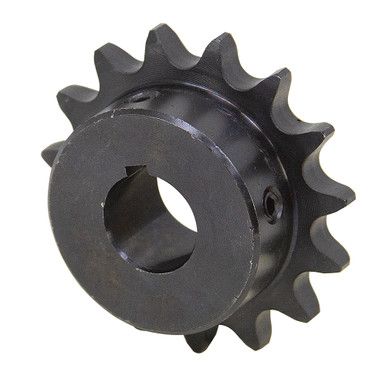

40 PITCH ANSI ROLLER CHAIN SPROCKET
New. ANSI standard 40 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 20
- Bore Size 1-7/16″
- Model Number 40BS20H-1-7/16
- Outside Diameter 3.46″
- Hub Diameter 2-5/8″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 3/8″ wide x 3/16″ depth
- Shpg. 1.33 lbs.
