Sale!

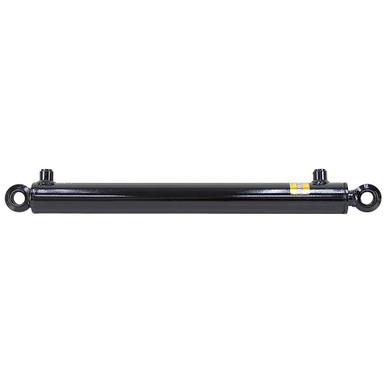

2" x 24" x 1.25" Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB 2024-S

2″ x 24″ x 1.25″ Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB 2024-S

Original price was: $302.40.Current price is: $60.48.

SKU: 904287 Category:

Description

2″ x 24″ x 1.25″ DOUBLE ACTING HYDRAULIC CYLINDER
Brand new Wolverine by Prince Mfg double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye mount on both ends to allow for angular misallignment.

SPECIFICATIONS
  • Brand Wolverine by Prince Mfg
  • Model Number WWSB2024-S
  • Double Acting
  • Bore x Stroke 2″ x 24″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1.25″
  • Column Load 3000 PSI max. @ full extension
  • Ports SAE 8
  • Retracted Length 31.5″
  • Shpg. 27 lbs.
END MOUNTINGS
  • Rod End Swivel-Ball
  • Ball Width 0.97″
  • Ball O.D. 2.25″
  • Pin Hole 1″
  • Base End Swivel-Ball
  • Ball Width 0.97″
  • Ball O.D. 2.25″
  • Pin Hole 1″
