Description

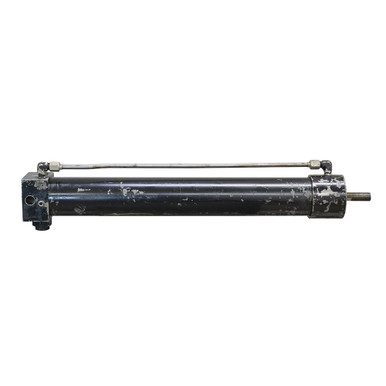

2.5″ x 17.25″ x 1.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded hydraulic cylinder with thread-on, external gland retainer. Cylinder has holding valve marked 810 010 2000 in the base end manifold.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.5″ x 17.25″
- Barrel Thickness 0.125″
- Gland Retainer Externally Threaded Gland Cap
- Pressure 3000 PSI max.
- Rod Dia. 1.75″
|
- Ports 1/4″ NPT
- Retracted Length 23.75″
- Gland Face to Rod Pin Center 2″
- Shpg. 21 lbs.
|
| END MOUNTINGS |
- Rod End Threaded
- Thread 5/8″-18 TPI x 1.75″ long
|
- Base End Female Trunnion
- Pin Outside/Inside Width 3″/ 1.5″
- Pin-Center-To-Rod Pin Center 23.75″
- Pin Center To Base End 0.553″
- Pin Diamter 0.625
|
