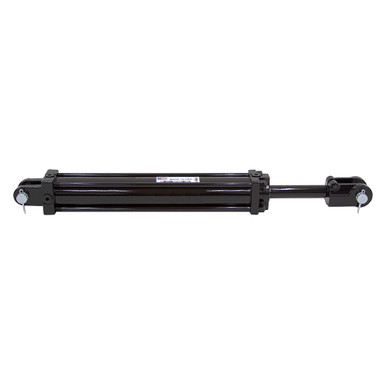

Name: 2.5" x 16" x 1.25" ASAE Double Acting Hydraulic Cylinder Prince E250160ABAAA07B
Brand: smartindustrialtools.com
SKU: 905193
Price: 61.70 USD
Availability: InStock

2.5″ x 16″ x 1.25″ ASAE Double Acting Hydraulic Cylinder Prince E250160ABAAA07B

SKU: 905193 Category: hot sale

Description

PRINCE DOUBLE ACTING TIE-ROD CYLINDER
Brand new, PRINCE tie-rod hydraulic cylinder. Premium quality with superior materials and workmanship. Chrome rod, high quality seals and steel components. Aircraft quality two-part polyester urethane paint.

SPECIFICATIONS
Brand PRINCE Model Number E250160ABAAA07B Type Double-Acting Bore x Stroke 2.5″ x 16″ ASAE Pressure 3000 PSI	Rod Dia. 1.25″ Column Load 11520 lbs. Ports SAE 8 Retracted Length 31.5″ Shpg. 39 lbs.
END MOUNTINGS
Rod End Clevis Outside Width 2.50″ Inside Width 1.06″ Throat Depth 1.8125″ Pin Hole 1.00″	Base End Clevis Outside Width 2.344″ Inside Width 1.06″ Throat Depth 1.875 “ Pin Hole 1.00″
