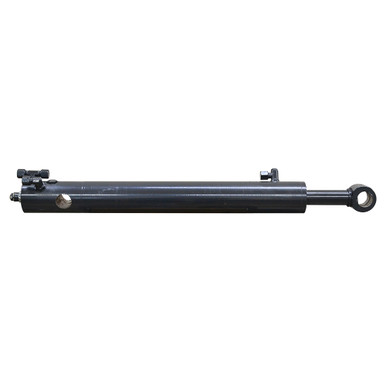

2.25″ x 14.125″ x 1.25″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting, hydraulic cylinder. SUN CBCA LHN counterbalance cartridge valve in base. Model Number 6817540.
| SPECIFICATIONS |
>
- Double Acting
- Bore x Stroke 2.25″ x 14.125″
- Barrel Thickness 0.1875″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.25″
|
- Ports JIC 6
- Retracted Length 24.375″
- Gland Face to Rod Pin Center 4.75″
- Shpg. 27 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.801″
- Pin-Center-To-Tang-End 0.95″
- Pin Hole 1.25″
|
- Base End Thru-Hole
- Width 2.625″
- Pin Center to Base End 3.46″
- Pin Hole 1.25″
|
