Description

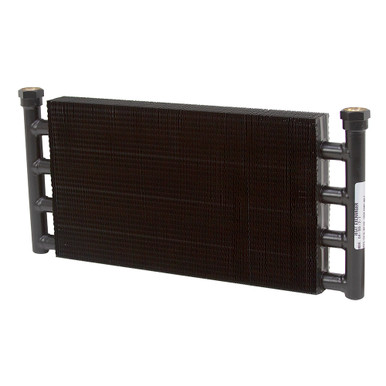

2-15 GPM TTP Thermal Transfer DH-095-2-1 Oil Cooler
Brand new, THERMAL TRANSFER DH series oil coolers are an excellent choice for radiator face mount oil cooling and other oil cooling applications.
Interchangeable with Hayden.
SPECIFICATIONS
- Brand Thermal Transfer Products
- Model Number DH-095-2-1
- Pressure 300 PSI max.
- Temperature 350 F° max.
- Fins Aluminum
- Turbulators Aluminum
- Manifolds Copper
- Port Connection Brass
- Flow Range GPM 2-15
- HP Removal 2-4 (5090-10180 BTU/HR)
- Ports SAE 10
- Overall Width (in.) 18
- Overall Height (in.) 8.5
- Overall Depth (in.) 1.5
- Shpg. 11 lbs.
| Mounting Kit for TTP DH Series Oil Coolers w/ Strap L-84741 (Quantity Recommended 4 per Cooler) | 905296 |
| Mounting Kit for TTP DH Series Oil Coolers Without Strap L-84740 (Quantity Recommended 4 per Cooler) | 905297 |
