Description
Product details
| Gross weight |
1.02 kg |
| Net weight |
1.02 kg |
| Actuator size [mm] |
13.5 mm |
| Body material |
AISI 304 |
| Closing Time [ms] [Max] |
300 ms |
| Closing Time [ms] [Min] |
200 ms |
| Connection standard |
Cetop 3 |
| Direction |
Manifold |
| Flow [gpm] [Max] |
8 gal/min |
| Flow [gpm] [Min] |
0 gal/min |
| Flow [l/min] [Max] |
30 L/min |
| Flow [l/min] [Min] |
0 L/min |
| Function |
NC |
| Material type |
Neutral media |
| Media temperature [°C] [Max] |
90 °C |
| Media temperature [°C] [Min] |
2 °C |
| Media temperature [°F] [Max] |
194 °F |
| Media temperature [°F] [Min] |
36 °F |
| Number of ways |
2/2 |
| Opening time [ms] [Max] |
125 ms |
| Opening time [ms] [Min] |
100 ms |
| Operating pressure [barg] [Max] |
160 barg |
| Operating pressure [barg] [Min] |
4 barg |
| Operating pressure [psig] [Max] |
2400 psig |
| Operating pressure [psig] [Min] |
51 psig |
| Operation |
Pilot operated |
| Parts Program name |
VDHT |
| Piston diameter Ø [mm] |
18 mm |
| Product group |
Valve |
| Product name |
Solenoid operated valves |
| Seal Material |
FKM |
| Serviceable |
Yes |
| Type |
VDHT 2/2 |
| Type designation |
VDHT 30 EC NC |
| Actuator size [mm] |
13.5 mm |
| Body material |
AISI 304 |
| Closing Time [ms] [Max] |
300 ms |
| Closing Time [ms] [Min] |
200 ms |
| Connection standard |
Cetop 3 |
| Direction |
Manifold |
| Flow [gpm] [Max] |
8 gal/min |
| Flow [gpm] [Min] |
0 gal/min |
| Flow [l/min] [Max] |
30 L/min |
| Flow [l/min] [Min] |
0 L/min |
| Function |
NC |
| Material type |
Neutral media |
| Media temperature [°C] [Max] |
90 °C |
| Media temperature [°C] [Min] |
2 °C |
| Media temperature [°F] [Max] |
194 °F |
| Media temperature [°F] [Min] |
36 °F |
| Number of ways |
2/2 |
| Opening time [ms] [Max] |
125 ms |
| Opening time [ms] [Min] |
100 ms |
| Operating pressure [barg] [Max] |
160 barg |
| Operating pressure [barg] [Min] |
4 barg |
| Operating pressure [psig] [Max] |
2400 psig |
| Operating pressure [psig] [Min] |
51 psig |
| Operation |
Pilot operated |
| Parts Program name |
VDHT |
| Piston diameter Ø [mm] |
18 mm |
| Product group |
Valve |
| Product name |
Solenoid operated valves |
| Seal Material |
FKM |
| Serviceable |
Yes |
| Type |
VDHT 2/2 |
| Type designation |
VDHT 30 EC NC |

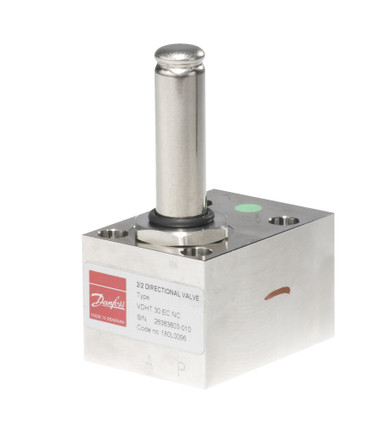

Type: VDHT, Connection standard: Cetop 3, Flow [gpm] [Max]: 8.000, Function: NC, Operation: Pilot operated, Direction: Manifold
