Description
14.08:1 SIZE 37 2 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL37-15/1-145TC-3S
- Box Size 37
- Stages 3
- Nominal Ratio 15:1
- Actual Ratio 14.08:1

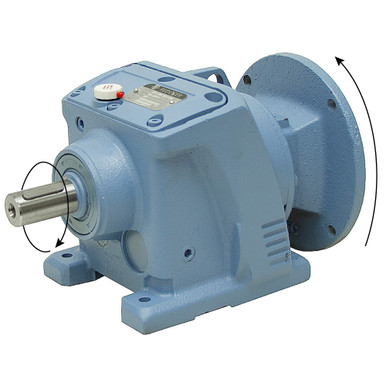

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 124 RPM
- Input Hp 2 Hp Max
- Output Torque 1016 in.-lbs. Max
- Over-Hung Load 436 lbs. Max
- Service Class II
- Motor Mount 145TC
- Output Shaft 1″ dia. x 1.97″ long keyed, 1/4″ wide keyway, shaft end tapped 3/8″-16
- Base Mount Four 0.35″ holes on 5.12″ x 4.33″ centers
- Shpg. 31 lbs.
