Description

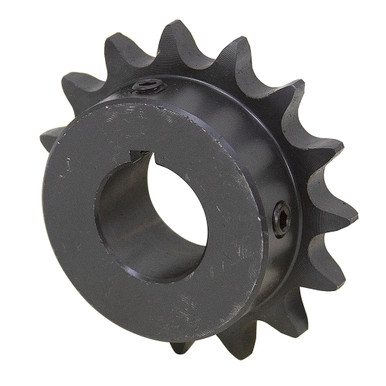

50 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 50 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 14
- Bore Size 7/8″
- Model Number 50BS14H-7/8
- Outside Diameter 3.11″
- Hub Diameter 2-1/8″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 3/16″ wide x 3/32″ depth
- Shpg. 1 lbs.
