Description

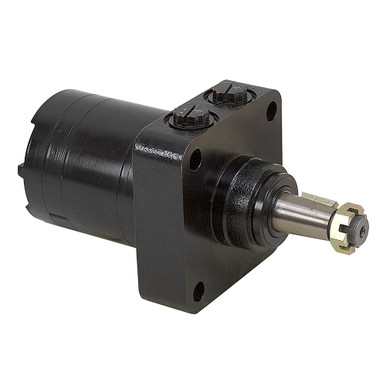

14.1 cu in DANFOSS 276230W31R1AAAAA HYDRAULIC MOTOR
New. DANFOSS WG series low speed high torque hydraulic motor.
SPECIFICATIONS
- Brand Danfoss
- Model 276230W31R1AAAAA
- Family WG Series
- Displacement 14.1 cu. in. / rev.
- Motor Type Gerotor
- Rotation Reversible
- Pressure:
1250 PSI cont.
2400 PSI int. - Torque:
3380 in-lbs. cont.
4680 in-lbs. int. - Speed:
240 RPM cont.
330 RPM int. - Flow:
15 GPM cont.
20 GPM int. - Mount 4 bolt wheel mount on 5.125″ b.c.
- Shaft 1″ tapered x 3.64″ long w/ 1/4″ keyway, threaded 3/4″-24 w/ castle nut
- Ports SAE 10
- Case Drain None
- Size 5.63″ x 4.85″ x 4.85″
- Shpg. 22 lbs.
