Description

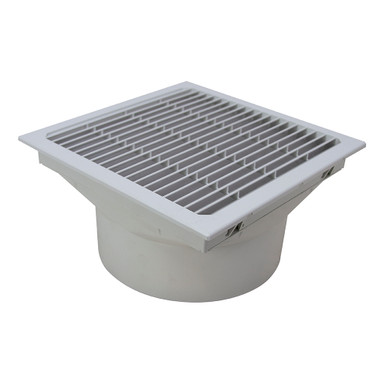

13″ GRILL 473 CFM 400 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF1340424R. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pushed through the plastic grill and filter. Plastic housing with metal fan blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 70db rating. Terminal block electrical connection.
SPECIFICATIONS
- Push Type Fan
- Model Number SF1340424R
- Flow 473 CFM max.
- Voltage 400 AC
- Amperage 0.26 Amps
- Power 160 Watts
- Speed 2900 RPM
- Operating Temperature Range Min. 14° F to Max. 131° F
- IP Rating 54
- Mount 8 holes on 5-15/16″ to 11-7/8″ x 5-15/16″ to 11-7/8″ centers
- Cutout Dimensions 11.5″ x 11.5″
- Blade Dia. 8-5/8″
- Number of Blades 5
- Size 12-3/4″ x 12-3/4″ x 6-1/2″
- Shpg. 12 lbs.
